FA127DRS225M4詳細信息
FA127DRS225M4
關鍵詞：螺旋輸送裝置減速機電機_FA127DRS225M4_FA127DR225M4
FA127DRS225M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127DRS225M4 | 48.80 | 45KW | 30.0rpm | 14100N.m | 1035kg | 51600N | 0.85 |
| FA127DRS225M4 | 42.15 | 45KW | 35.0rpm | 12200N.m | 1035kg | 54300N | 1.00 |
| FA127DRS225M4 | 37.28 | 45KW | 40.0rpm | 10800N.m | 1035kg | 55800N | 1.10 |
| FA127DRS225M4 | 26.86 | 45KW | 55.0rpm | 7810N.m | 1035kg | 55700N | 1.10 |
| FA127DRS225M4 | 24.57 | 45KW | 60.0rpm | 7140N.m | 1035kg | 55300N | 1.20 |
| FA127DRS225M4 | 31.33 | 45KW | 47.0rpm | 9100N.m | 1035kg | 56100N | 1.30 |
| FA127DRS225M4 | 25.30 | 45KW | 58.0rpm | 7350N.m | 1035kg | 55400N | 1.65 |
| FA127DRS225M4 | 21.38 | 45KW | 69.0rpm | 6210N.m | 1035kg | 54500N | 1.95 |
| FA127DRS225M4 | 18.87 | 45KW | 78.0rpm | 5480N.m | 1035kg | 53600N | 2.00 |
| FA127DRS225M4 | 16.36 | 45KW | 90.0rpm | 4750N.m | 1035kg | 52600N | 2.30 |
| FA127DRS225M4 | 14.55 | 45KW | 102rpm | 4230N.m | 1035kg | 51600N | 2.60 |
| FA127DRS225M4 | 12.54 | 45KW | 118rpm | 3640N.m | 1035kg | 50300N | 2.70 |
| FA127DRS225M4 | 10.19 | 45KW | 145rpm | 2960N.m | 1035kg | 48300N | 3.20 |
| FA127DRS225M4 | 8.86 | 45KW | 167rpm | 2570N.m | 1035kg | 46500N | 2.70 |
| FA127DRS225M4 | 7.88 | 45KW | 187rpm | 2290N.m | 1035kg | 45400N | 2.60 |
| FA127DRS225M4 | 6.80 | 45KW | 218rpm | 1970N.m | 1035kg | 44000N | 3.50 |
| FA127DRS225M4 | 5.52 | 45KW | 268rpm | 1600N.m | 1035kg | 42000N | 3.70 |
FA127DR225M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA127DR225M4 | 48.80 | 45KW | 30.0rpm | 14100N.m | 1035kg | 51600N | 0.85 |
| FA127DR225M4 | 42.15 | 45KW | 35.0rpm | 12200N.m | 1035kg | 54300N | 1.00 |
| FA127DR225M4 | 37.28 | 45KW | 40.0rpm | 10800N.m | 1035kg | 55800N | 1.10 |
| FA127DR225M4 | 26.86 | 45KW | 55.0rpm | 7810N.m | 1035kg | 55700N | 1.10 |
| FA127DR225M4 | 24.57 | 45KW | 60.0rpm | 7140N.m | 1035kg | 55300N | 1.20 |
| FA127DR225M4 | 31.33 | 45KW | 47.0rpm | 9100N.m | 1035kg | 56100N | 1.30 |
| FA127DR225M4 | 25.30 | 45KW | 58.0rpm | 7350N.m | 1035kg | 55400N | 1.65 |
| FA127DR225M4 | 21.38 | 45KW | 69.0rpm | 6210N.m | 1035kg | 54500N | 1.95 |
| FA127DR225M4 | 18.87 | 45KW | 78.0rpm | 5480N.m | 1035kg | 53600N | 2.00 |
| FA127DR225M4 | 16.36 | 45KW | 90.0rpm | 4750N.m | 1035kg | 52600N | 2.30 |
| FA127DR225M4 | 14.55 | 45KW | 102rpm | 4230N.m | 1035kg | 51600N | 2.60 |
| FA127DR225M4 | 12.54 | 45KW | 118rpm | 3640N.m | 1035kg | 50300N | 2.70 |
| FA127DR225M4 | 10.19 | 45KW | 145rpm | 2960N.m | 1035kg | 48300N | 3.20 |
| FA127DR225M4 | 8.86 | 45KW | 167rpm | 2570N.m | 1035kg | 46500N | 2.70 |
| FA127DR225M4 | 7.88 | 45KW | 187rpm | 2290N.m | 1035kg | 45400N | 2.60 |
| FA127DR225M4 | 6.80 | 45KW | 218rpm | 1970N.m | 1035kg | 44000N | 3.50 |
| FA127DR225M4 | 5.52 | 45KW | 268rpm | 1600N.m | 1035kg | 42000N | 3.70 |
FA127DRS225M4電動機減速機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

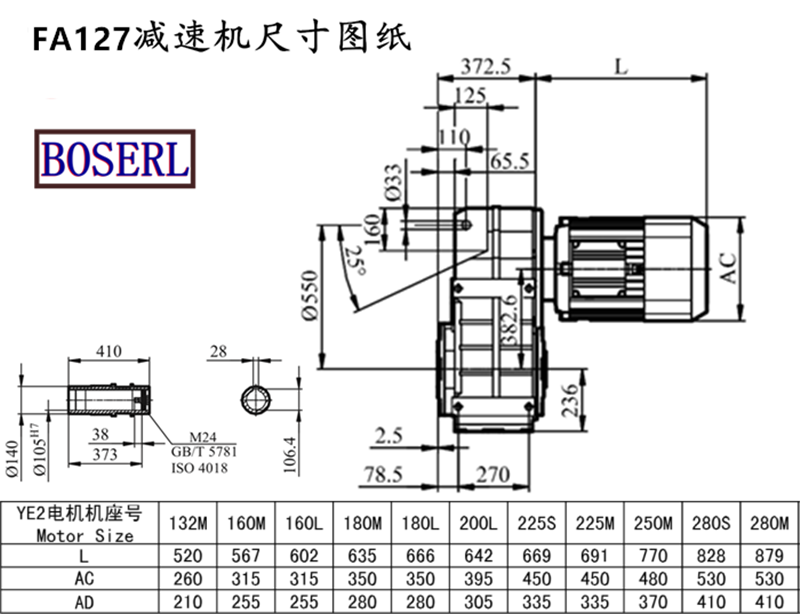

FA127DRS225M4電動機減速機安裝尺寸圖紙
FA127DRS225M4電動機減速機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 螺旋輸送裝置減速機電機 FA127DRS225M4 FA127DR225M4
