FA77R37DM71S4詳細信息
FA77R37DM71S4
關鍵詞：18.5KW的電機配什么平行軸斜齒輪減速器_FA77R37DM71S4_FA77R37DRE80MK4
FA77R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA77R37DM71S4 | 1053 | 0.25KW | 1.20r/min | 1740N.m | 108.5kg | 13900N | 0.85 |
| FA77R37DM71S4 | 910 | 0.25KW | 1.40r/min | 1490N.m | 108.5kg | 15700N | 1.00 |
| FA77R37DM71S4 | 810 | 0.25KW | 1.60r/min | 1290N.m | 108.5kg | 16900N | 1.15 |
| FA77R37DM71S4 | 710 | 0.25KW | 1.80r/min | 1130N.m | 108.5kg | 17700N | 1.30 |
| FA77R37DM71S4 | 615 | 0.25KW | 2.10r/min | 1000N.m | 108.5kg | 18300N | 1.50 |
| FA77R37DM71S4 | 538 | 0.25KW | 2.40r/min | 870N.m | 108.5kg | 18700N | 1.70 |
| FA77R37DM71S4 | 480 | 0.25KW | 2.70r/min | 775N.m | 108.5kg | 19000N | 1.95 |
| FA77R37DM71S4 | 413 | 0.25KW | 3.20r/min | 660N.m | 108.5kg | 19400N | 2.30 |
FA77R37DRE80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA77R37DRE80MK4 | 480 | 0.55KW | 2.90r/min | 1660N.m | 113.5kg | 14500N | 0.90 |
| FA77R37DRE80MK4 | 413 | 0.55KW | 3.40r/min | 1420N.m | 113.5kg | 16200N | 1.05 |
| FA77R37DRE80MK4 | 367 | 0.55KW | 3.80r/min | 1270N.m | 113.5kg | 17100N | 1.20 |
| FA77R37DRE80MK4 | 323 | 0.55KW | 4.30r/min | 1120N.m | 113.5kg | 17800N | 1.35 |
FA77R37DM71S4減速機電動機類型：
F77R37DM71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA77BR37DM71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV77BR37DM71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA77R37DM71S4空心軸安裝平行軸—斜齒輪減速機
FV77R37DM71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF77R37DM71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF77R37DM71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ77R37DM71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ77R37DM71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF77R37DM71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH77BR37DM71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH77R37DM71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF77R37DM71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ77R37DM71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

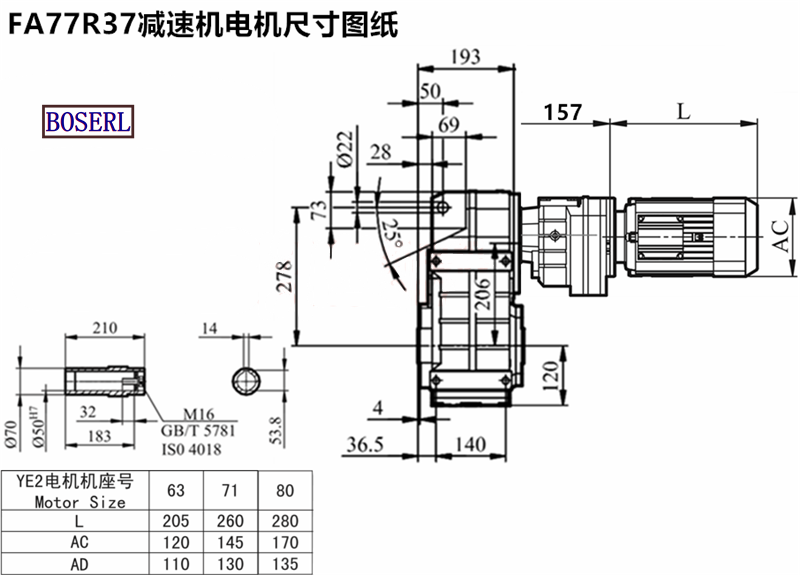

FA77R37DM71S4減速機電動機安裝尺寸圖紙
FA77R37DM71S4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 18.5KW的電機配什么平行軸斜齒輪減速器 FA77R37DM71S4 FA77R37DRE80MK4
