R27DV80M4詳細信息
R27DV80M4
訂購熱線：13360667204
關鍵詞：輸出轉數99.5圈/分鐘減速機電機_R27DV80M4_R27DRN80M4_輸出轉數99.5圈一分鐘減速電機_一分鐘轉99.5圈齒輪減速箱馬達_一分鐘轉99.5圈減速器_一分鐘轉99.5圈電機減速機
R27DV80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R27DV80M4 | 28.78 | 0.75KW | 50.0rpm | 144N.m | 21.5kg | 2860N | 0.90 |
| R27DV80M4 | 24.47 | 0.75KW | 59.0rpm | 122N.m | 21.5kg | 2780N | 1.05 |
| R27DV80M4 | 22.32 | 0.75KW | 64.0rpm | 111N.m | 21.5kg | 2730N | 1.15 |
| R27DV80M4 | 19.35 | 0.75KW | 74.0rpm | 97N.m | 21.5kg | 2650N | 1.35 |
| R27DV80M4 | 18.08 | 0.75KW | 79.0rpm | 90N.m | 21.5kg | 2610N | 1.45 |
| R27DV80M4 | 15.63 | 0.75KW | 92.0rpm | 78N.m | 21.5kg | 2520N | 1.65 |
| R27DV80M4 | 13.28 | 0.75KW | 108rpm | 66N.m | 21.5kg | 2430N | 1.95 |
| R27DV80M4 | 11.86 | 0.75KW | 121rpm | 59N.m | 21.5kg | 2360N | 2.20 |
| R27DV80M4 | 10.13 | 0.75KW | 142rpm | 50N.m | 21.5kg | 2270N | 2.40 |
| R27DV80M4 | 9.41 | 0.75KW | 152rpm | 47N.m | 21.5kg | 2190N | 2.60 |
| R27DV80M4 | 8.16 | 0.75KW | 176rpm | 41N.m | 21.5kg | 2110N | 2.80 |
| R27DV80M4 | 7.63 | 0.75KW | 188rpm | 38N.m | 21.5kg | 2070N | 2.90 |
| R27DV80M4 | 6.59 | 0.75KW | 218rpm | 33N.m | 21.5kg | 1990N | 3.20 |
| R27DV80M4 | 5.60 | 0.75KW | 256rpm | 28N.m | 21.5kg | 1900N | 3.60 |
| R27DV80M4 | 5.00 | 0.75KW | 287rpm | 25N.m | 21.5kg | 1850N | 3.80 |
R27DRN80M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R27DRN80M4 | 28.78 | 0.75KW | 50.0rpm | 144N.m | 21.5kg | 2860N | 0.90 |
| R27DRN80M4 | 24.47 | 0.75KW | 59.0rpm | 122N.m | 21.5kg | 2780N | 1.05 |
| R27DRN80M4 | 22.32 | 0.75KW | 64.0rpm | 111N.m | 21.5kg | 2730N | 1.15 |
| R27DRN80M4 | 19.35 | 0.75KW | 74.0rpm | 97N.m | 21.5kg | 2650N | 1.35 |
| R27DRN80M4 | 18.08 | 0.75KW | 79.0rpm | 90N.m | 21.5kg | 2610N | 1.45 |
| R27DRN80M4 | 15.63 | 0.75KW | 92.0rpm | 78N.m | 21.5kg | 2520N | 1.65 |
| R27DRN80M4 | 13.28 | 0.75KW | 108rpm | 66N.m | 21.5kg | 2430N | 1.95 |
| R27DRN80M4 | 11.86 | 0.75KW | 121rpm | 59N.m | 21.5kg | 2360N | 2.20 |
| R27DRN80M4 | 10.13 | 0.75KW | 142rpm | 50N.m | 21.5kg | 2270N | 2.40 |
| R27DRN80M4 | 9.41 | 0.75KW | 152rpm | 47N.m | 21.5kg | 2190N | 2.60 |
| R27DRN80M4 | 8.16 | 0.75KW | 176rpm | 41N.m | 21.5kg | 2110N | 2.80 |
| R27DRN80M4 | 7.63 | 0.75KW | 188rpm | 38N.m | 21.5kg | 2070N | 2.90 |
| R27DRN80M4 | 6.59 | 0.75KW | 218rpm | 33N.m | 21.5kg | 1990N | 3.20 |
| R27DRN80M4 | 5.60 | 0.75KW | 256rpm | 28N.m | 21.5kg | 1900N | 3.60 |
| R27DRN80M4 | 5.00 | 0.75KW | 287rpm | 25N.m | 21.5kg | 1850N | 3.80 |

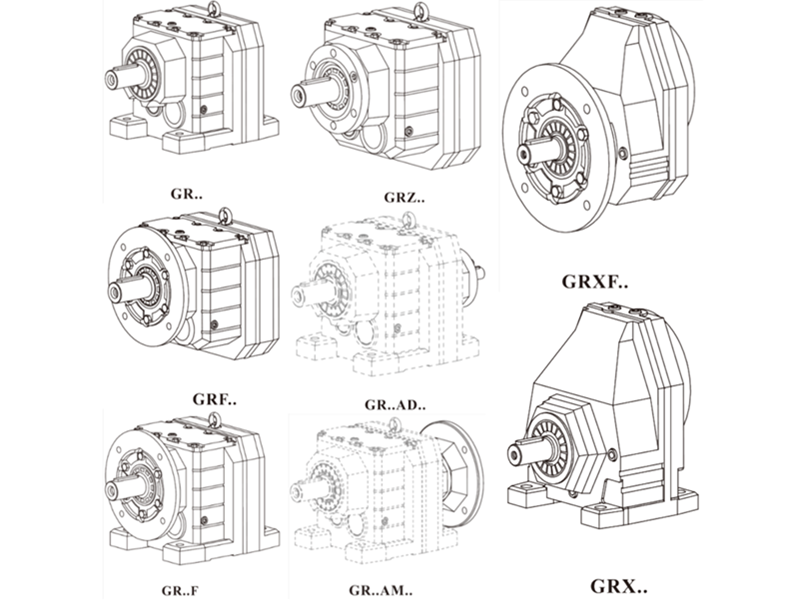

R27DV80M4電機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

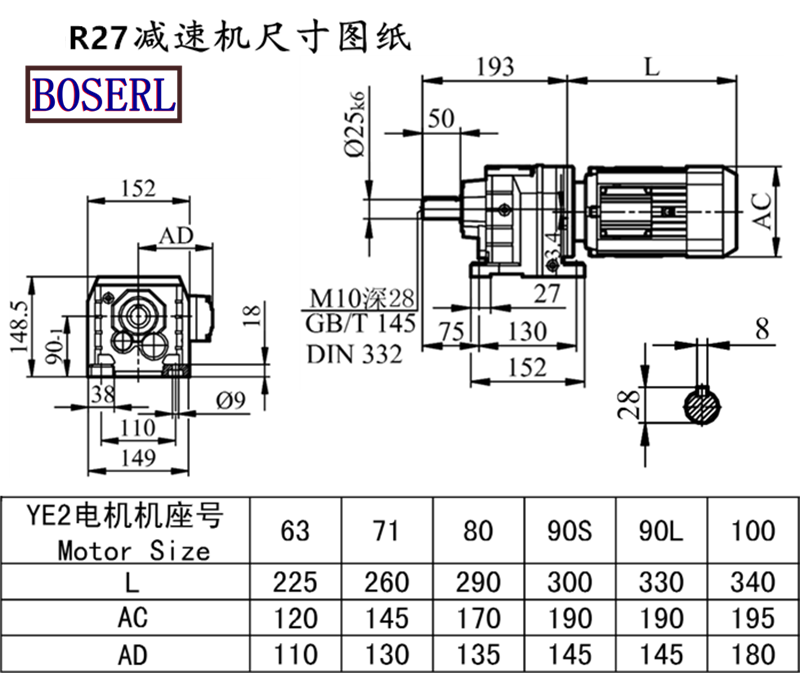

R27DV80M4電機減速機安裝尺寸圖紙
R27DV80M4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 輸出轉數99.5圈/分鐘減速機電機 R27DV80M4 R27DRN80M4 輸出轉數99.5圈一分鐘減速電機 一分鐘轉99.5圈齒輪減速箱馬達 一分鐘轉99.5圈減速器 一分鐘轉99.5圈電機減速機
