R97DRN132L4詳細信息
R97DRN132L4
訂購熱線：13360667204
關鍵詞：5.5千瓦馬達配減速機_R97DRN132L4_R97DRN132MC4
R97DRN132L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R97DRN132L4 | 59.92 | 7.5kw | 24rpm | 2970N.m | 155kg | 20900N | 1 |
| R97DRN132L4 | 53.21 | 7.5kw | 27rpm | 2630N.m | 155kg | 22200N | 1.15 |
| R97DRN132L4 | 47.58 | 7.5kw | 30rpm | 2350N.m | 155kg | 21700N | 1.25 |
| R97DRN132L4 | 42.78 | 7.5kw | 34rpm | 2120N.m | 155kg | 21300N | 1.4 |
| R97DRN132L4 | 37.13 | 7.5kw | 39rpm | 1840N.m | 155kg | 20700N | 1.65 |
| R97DRN132L4 | 33.25 | 7.5kw | 43rpm | 1640N.m | 155kg | 20200N | 1.75 |
| R97DRN132L4 | 27.58 | 7.5kw | 52rpm | 1360N.m | 155kg | 19300N | 1.95 |
| R97DRN132L4 | 32.05 | 7.5kw | 45rpm | 1580N.m | 155kg | 20000N | 1.6 |
| R97DRN132L4 | 27.19 | 7.5kw | 53rpm | 1340N.m | 155kg | 19200N | 1.9 |
| R97DRN132L4 | 25.03 | 7.5kw | 58rpm | 1240N.m | 155kg | 19800N | 2.3 |
| R97DRN132L4 | 22.37 | 7.5kw | 65rpm | 1100N.m | 155kg | 18300N | 2.4 |
| R97DRN132L4 | 20.14 | 7.5kw | 72rpm | 990N.m | 155kg | 17900N | 2.6 |
| R97DRN132L4 | 18.24 | 7.5kw | 79rpm | 900N.m | 155kg | 17400N | 2.8 |
R97DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R97DRN132MC4 | 59.92 | 7.5kw | 24rpm | 2970N.m | 155kg | 20900N | 1 |
| R97DRN132MC4 | 53.21 | 7.5kw | 27rpm | 2630N.m | 155kg | 22200N | 1.15 |
| R97DRN132MC4 | 47.58 | 7.5kw | 30rpm | 2350N.m | 155kg | 21700N | 1.25 |
| R97DRN132MC4 | 42.78 | 7.5kw | 34rpm | 2120N.m | 155kg | 21300N | 1.4 |
| R97DRN132MC4 | 37.13 | 7.5kw | 39rpm | 1840N.m | 155kg | 20700N | 1.65 |
| R97DRN132MC4 | 33.25 | 7.5kw | 43rpm | 1640N.m | 155kg | 20200N | 1.75 |
| R97DRN132MC4 | 27.58 | 7.5kw | 52rpm | 1360N.m | 155kg | 19300N | 1.95 |
| R97DRN132MC4 | 32.05 | 7.5kw | 45rpm | 1580N.m | 155kg | 20000N | 1.6 |
| R97DRN132MC4 | 27.19 | 7.5kw | 53rpm | 1340N.m | 155kg | 19200N | 1.9 |
| R97DRN132MC4 | 25.03 | 7.5kw | 58rpm | 1240N.m | 155kg | 19800N | 2.3 |
| R97DRN132MC4 | 22.37 | 7.5kw | 65rpm | 1100N.m | 155kg | 18300N | 2.4 |
| R97DRN132MC4 | 20.14 | 7.5kw | 72rpm | 990N.m | 155kg | 17900N | 2.6 |
| R97DRN132MC4 | 18.24 | 7.5kw | 79rpm | 900N.m | 155kg | 17400N | 2.8 |

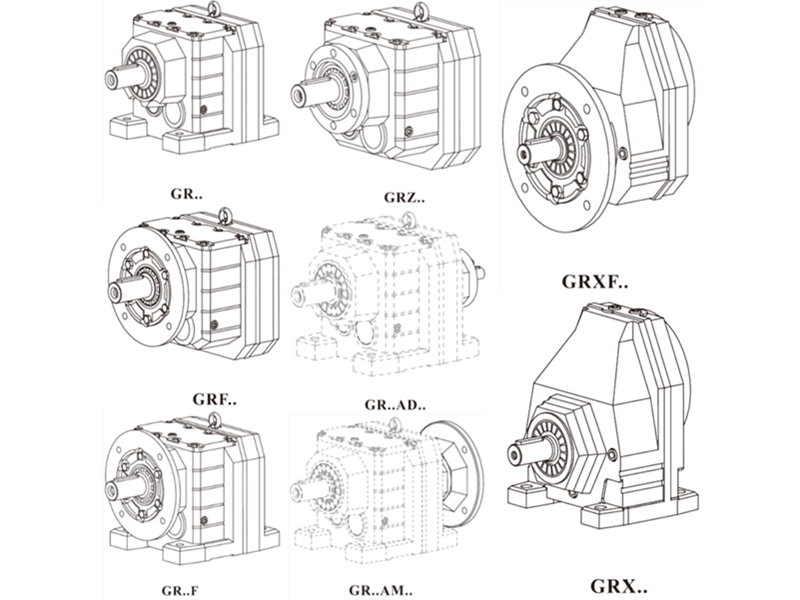

R97DRN132L4減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

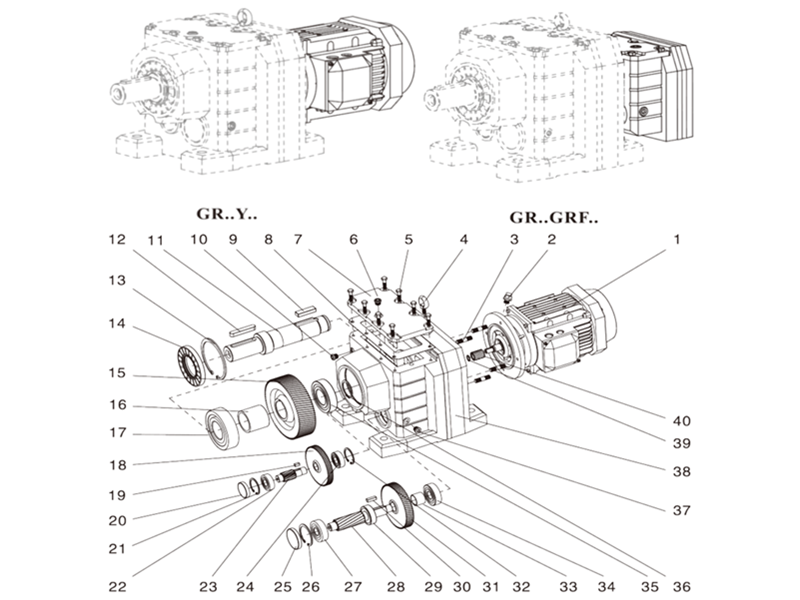

R97DRN132L4減速機馬達安裝尺寸圖紙
R97DRN132L4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 5.5千瓦馬達配減速機 R97DRN132L4 R97DRN132MC4
