RF17DRS71S4詳細信息
RF17DRS71S4
訂購熱線：13360667204
關鍵詞：15千瓦立式電機減速機一體機_RF17DRS71S4_RF17DR71S4
RF17DRS71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF17DRS71S4 | 57.35 | 0.25KW | 23.0rpm | 105N.m | 14kg | 156N | 0.80 |
| RF17DRS71S4 | 53.76 | 0.25KW | 24.0rpm | 99N.m | 14kg | 785N | 0.85 |
| RF17DRS71S4 | 47.44 | 0.25KW | 27.0rpm | 87N.m | 14kg | 1630N | 1.00 |
| RF17DRS71S4 | 44.18 | 0.25KW | 29.0rpm | 81N.m | 14kg | 2000N | 1.05 |
| RF17DRS71S4 | 38.61 | 0.25KW | 34.0rpm | 71N.m | 14kg | 2200N | 1.20 |
| RF17DRS71S4 | 36.20 | 0.25KW | 36.0rpm | 66N.m | 14kg | 2180N | 1.30 |
| RF17DRS71S4 | 31.94 | 0.25KW | 41.0rpm | 59N.m | 14kg | 2120N | 1.45 |
| RF17DRS71S4 | 28.32 | 0.25KW | 46.0rpm | 52N.m | 14kg | 2070N | 1.65 |
| RF17DRS71S4 | 24.07 | 0.25KW | 54.0rpm | 44N.m | 14kg | 2000N | 1.90 |
| RF17DRS71S4 | 25.23 | 0.25KW | 52.0rpm | 46N.m | 14kg | 2020N | 1.85 |
| RF17DRS71S4 | 23.15 | 0.25KW | 56.0rpm | 42N.m | 14kg | 1980N | 2.00 |
| RF17DRS71S4 | 19.71 | 0.25KW | 66.0rpm | 36N.m | 14kg | 1910N | 2.40 |
| RF17DRS71S4 | 16.99 | 0.25KW | 77.0rpm | 31N.m | 14kg | 1840N | 2.70 |
| RF17DRS71S4 | 15.84 | 0.25KW | 82.0rpm | 29N.m | 14kg | 1810N | 2.90 |
| RF17DRS71S4 | 13.84 | 0.25KW | 94.0rpm | 25N.m | 14kg | 1740N | 3.40 |
| RF17DRS71S4 | 12.98 | 0.25KW | 100rpm | 24N.m | 14kg | 1720N | 3.60 |
| RF17DRS71S4 | 11.45 | 0.25KW | 114rpm | 21N.m | 14kg | 1660N | 3.90 |
RF17DR71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF17DR71S4 | 57.35 | 0.25KW | 23.0rpm | 105N.m | 14kg | 156N | 0.80 |
| RF17DR71S4 | 53.76 | 0.25KW | 24.0rpm | 99N.m | 14kg | 785N | 0.85 |
| RF17DR71S4 | 47.44 | 0.25KW | 27.0rpm | 87N.m | 14kg | 1630N | 1.00 |
| RF17DR71S4 | 44.18 | 0.25KW | 29.0rpm | 81N.m | 14kg | 2000N | 1.05 |
| RF17DR71S4 | 38.61 | 0.25KW | 34.0rpm | 71N.m | 14kg | 2200N | 1.20 |
| RF17DR71S4 | 36.20 | 0.25KW | 36.0rpm | 66N.m | 14kg | 2180N | 1.30 |
| RF17DR71S4 | 31.94 | 0.25KW | 41.0rpm | 59N.m | 14kg | 2120N | 1.45 |
| RF17DR71S4 | 28.32 | 0.25KW | 46.0rpm | 52N.m | 14kg | 2070N | 1.65 |
| RF17DR71S4 | 24.07 | 0.25KW | 54.0rpm | 44N.m | 14kg | 2000N | 1.90 |
| RF17DR71S4 | 25.23 | 0.25KW | 52.0rpm | 46N.m | 14kg | 2020N | 1.85 |
| RF17DR71S4 | 23.15 | 0.25KW | 56.0rpm | 42N.m | 14kg | 1980N | 2.00 |
| RF17DR71S4 | 19.71 | 0.25KW | 66.0rpm | 36N.m | 14kg | 1910N | 2.40 |
| RF17DR71S4 | 16.99 | 0.25KW | 77.0rpm | 31N.m | 14kg | 1840N | 2.70 |
| RF17DR71S4 | 15.84 | 0.25KW | 82.0rpm | 29N.m | 14kg | 1810N | 2.90 |
| RF17DR71S4 | 13.84 | 0.25KW | 94.0rpm | 25N.m | 14kg | 1740N | 3.40 |
| RF17DR71S4 | 12.98 | 0.25KW | 100rpm | 24N.m | 14kg | 1720N | 3.60 |
| RF17DR71S4 | 11.45 | 0.25KW | 114rpm | 21N.m | 14kg | 1660N | 3.90 |
RF17DRS71S4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

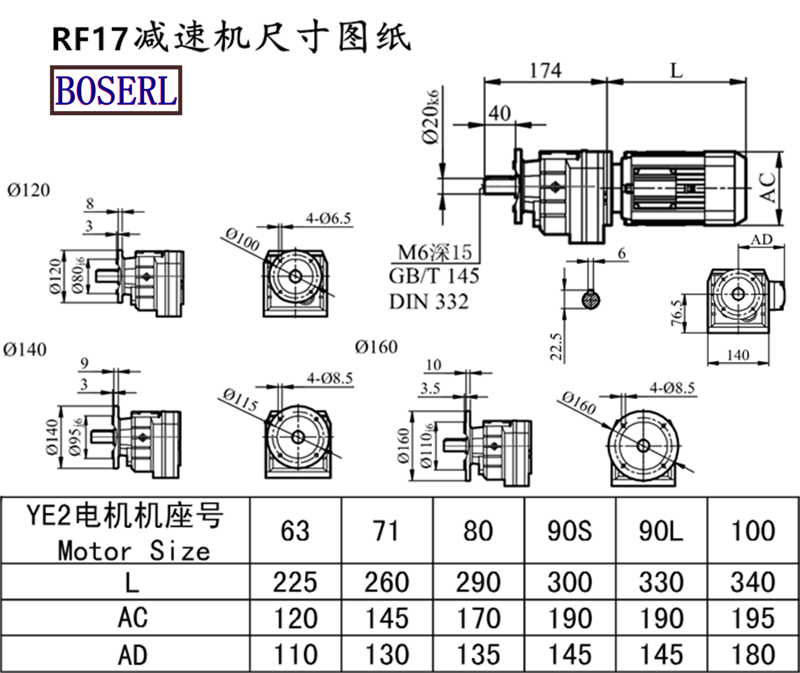

RF17DRS71S4齒輪減速機馬達安裝尺寸圖紙
RF17DRS71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 15千瓦立式電機減速機一體機 RF17DRS71S4 RF17DR71S4
