同軸斜齒輪減速機電機
網站首頁 > BOSERL減速機 > 同軸斜齒輪減速機廠家 > RF系列減速機廠家

RF27DRS71S4詳細信息

prevnext

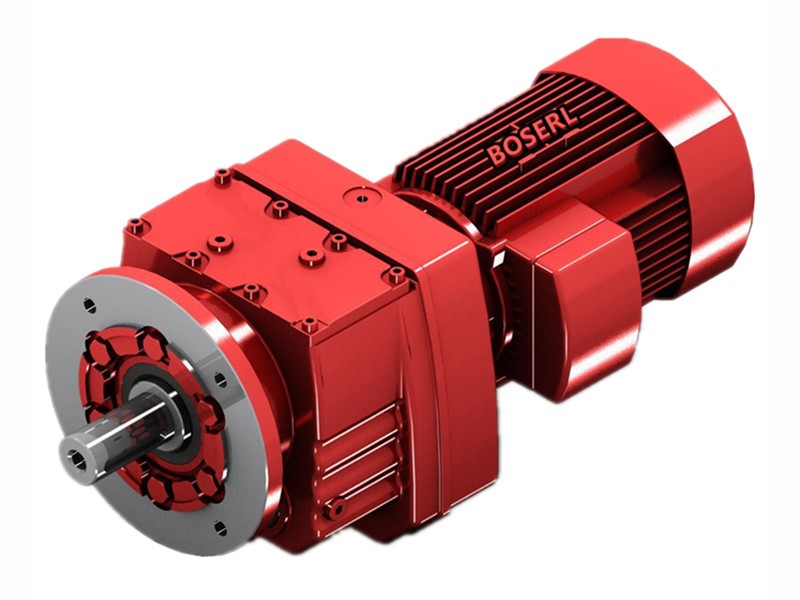

RF27DRS71S4

訂購熱線：13360667204
  1. 詳細信息

關鍵詞：4KW立式電機減速器一體機_RF27DRS71S4_RF27DR71S4

RF27DRS71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
RF27DRS71S484.780.25KW15.0rpm156N.m15.5kg4100N0.85
RF27DRS71S474.110.25KW18.0rpm136N.m15.5kg4210N0.95
RF27DRS71S469.470.25KW19.0rpm128N.m15.5kg4240N1.00
RF27DRS71S461.300.25KW21.0rpm113N.m15.5kg4180N1.15
RF27DRS71S455.870.25KW23.0rpm103N.m15.5kg4090N1.25
RF27DRS71S448.170.25KW27.0rpm88N.m15.5kg3940N1.45
RF27DRS71S444.900.25KW29.0rpm82N.m15.5kg3870N1.60
RF27DRS71S439.250.25KW33.0rpm72N.m15.5kg3730N1.80
RF27DRS71S436.790.25KW35.0rpm68N.m15.5kg3660N1.90
RF27DRS71S432.470.25KW40.0rpm60N.m15.5kg3540N2.20
RF27DRS71S428.780.25KW45.0rpm53N.m15.5kg3420N2.50
RF27DRS71S424.470.25KW53.0rpm45N.m15.5kg3270N2.90
RF27DRS71S428.370.25KW46.0rpm52N.m15.5kg3410N2.50
RF27DRS71S426.090.25KW50.0rpm48N.m15.5kg3330N2.70
RF27DRS71S422.320.25KW58.0rpm41N.m15.5kg3180N3.20
RF27DRS71S419.350.25KW67.0rpm36N.m15.5kg3050N3.70
RF27DRS71S418.080.25KW72.0rpm33N.m15.5kg2990N3.90
RF27DRS71S415.630.25KW83.0rpm29N.m15.5kg2860N4.50
RF27DRS71S413.280.25KW98.0rpm24N.m15.5kg2730N5.30
RF27DRS71S411.860.25KW110rpm22N.m15.5kg2630N5.90
RF27DRS71S410.130.25KW128rpm19N.m15.5kg2510N6.60
RF27DRS71S49.410.25KW138rpm17N.m15.5kg2440N7.00
RF27DRS71S48.160.25KW159rpm15N.m15.5kg2330N7.70
RF27DRS71S47.630.25KW170rpm14N.m15.5kg2280N8.00
RF27DRS71S46.590.25KW197rpm12N.m15.5kg2180N8.80
RF27DRS71S45.600.25KW232rpm10N.m15.5kg2080N9.60
RF27DRS71S45.000.25KW260rpm9.2N.m15.5kg2000N10.0
RF27DRS71S44.270.25KW304rpm7.8N.m15.5kg1900N11.0
RF27DRS71S44.000.25KW325rpm7.3N.m15.5kg1870N12.0
RF27DRS71S43.370.25KW386rpm6.2N.m15.5kg1770N13.0

RF27DR71S4減速機電機參數：

型號減速比功率轉數扭矩重量力矩安全系數
RF27DR71S484.780.25KW15.0rpm156N.m15.5kg4100N0.85
RF27DR71S474.110.25KW18.0rpm136N.m15.5kg4210N0.95
RF27DR71S469.470.25KW19.0rpm128N.m15.5kg4240N1.00
RF27DR71S461.300.25KW21.0rpm113N.m15.5kg4180N1.15
RF27DR71S455.870.25KW23.0rpm103N.m15.5kg4090N1.25
RF27DR71S448.170.25KW27.0rpm88N.m15.5kg3940N1.45
RF27DR71S444.900.25KW29.0rpm82N.m15.5kg3870N1.60
RF27DR71S439.250.25KW33.0rpm72N.m15.5kg3730N1.80
RF27DR71S436.790.25KW35.0rpm68N.m15.5kg3660N1.90
RF27DR71S432.470.25KW40.0rpm60N.m15.5kg3540N2.20
RF27DR71S428.780.25KW45.0rpm53N.m15.5kg3420N2.50
RF27DR71S424.470.25KW53.0rpm45N.m15.5kg3270N2.90
RF27DR71S428.370.25KW46.0rpm52N.m15.5kg3410N2.50
RF27DR71S426.090.25KW50.0rpm48N.m15.5kg3330N2.70
RF27DR71S422.320.25KW58.0rpm41N.m15.5kg3180N3.20
RF27DR71S419.350.25KW67.0rpm36N.m15.5kg3050N3.70
RF27DR71S418.080.25KW72.0rpm33N.m15.5kg2990N3.90
RF27DR71S415.630.25KW83.0rpm29N.m15.5kg2860N4.50
RF27DR71S413.280.25KW98.0rpm24N.m15.5kg2730N5.30
RF27DR71S411.860.25KW110rpm22N.m15.5kg2630N5.90
RF27DR71S410.130.25KW128rpm19N.m15.5kg2510N6.60
RF27DR71S49.410.25KW138rpm17N.m15.5kg2440N7.00
RF27DR71S48.160.25KW159rpm15N.m15.5kg2330N7.70
RF27DR71S47.630.25KW170rpm14N.m15.5kg2280N8.00
RF27DR71S46.590.25KW197rpm12N.m15.5kg2180N8.80
RF27DR71S45.600.25KW232rpm10N.m15.5kg2080N9.60
RF27DR71S45.000.25KW260rpm9.2N.m15.5kg2000N10.0
RF27DR71S44.270.25KW304rpm7.8N.m15.5kg1900N11.0
RF27DR71S44.000.25KW325rpm7.3N.m15.5kg1870N12.0
RF27DR71S43.370.25KW386rpm6.2N.m15.5kg1770N13.0

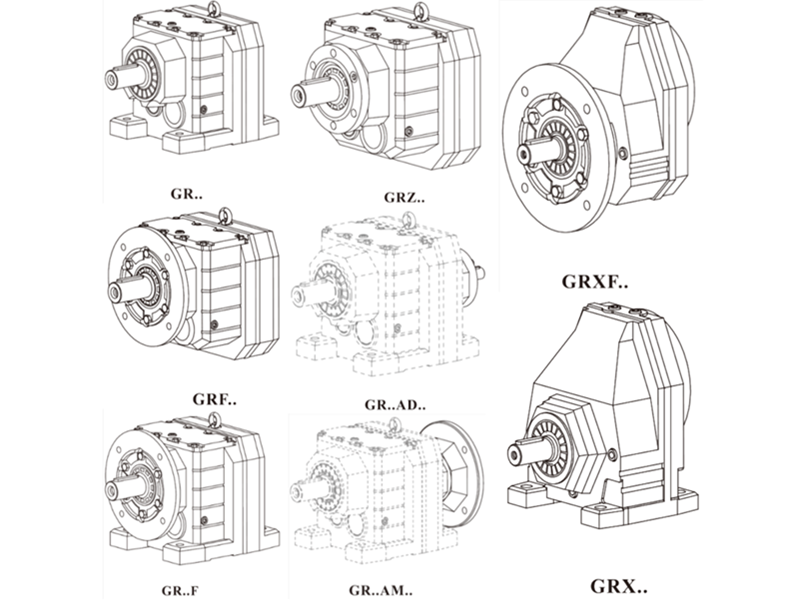

RF27DRS71S4齒輪減速機馬達類型：

RX..DR..單級底腳安裝斜齒輪減速電機

RXF..DR..單級B5法蘭安裝斜齒輪減速機電機

R..DR..底腳安裝斜齒輪減速電機

R..F DR..底腳、B5法蘭安裝斜齒輪減速電機

RF..DR..B5法蘭安裝斜齒輪減速電機

RZ..DR..B14法蘭安裝斜齒輪減速電機

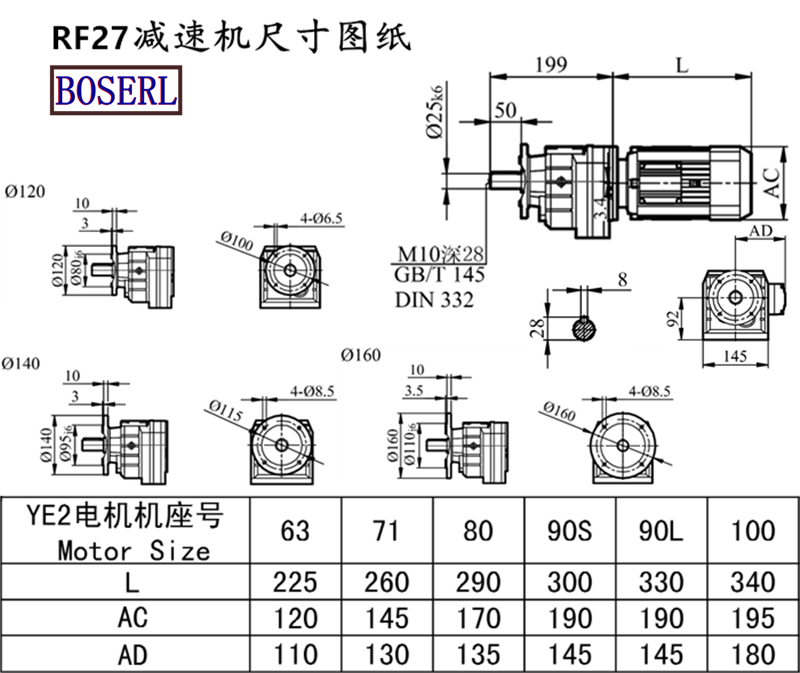

RF27DRS71S4齒輪減速機馬達安裝尺寸圖紙


RF27DRS71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A約

立式減速機應用案例展示：

關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家

RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機

RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:  4KW立式電機減速器一體機 RF27DRS71S4 RF27DR71S4

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
RF27DRS71S4減速機樣本 點擊下載
RF27DRS71S4減速機三維圖紙 點擊下載
